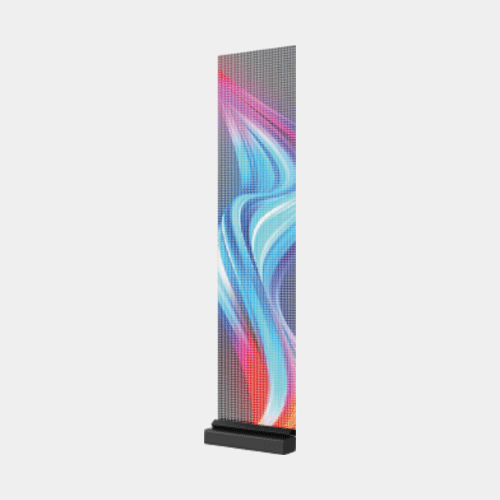

XC-M2.5

Product details

• Keel-free: Ultra-clear/thin/transparent/heat-resistant materials + high-precision PCB & hollow mesh circuit.

• Ultra-thin: <2mm overall, 1.8mm module thickness.

• Ultra-light: 5-6kg/㎡, easy to handle.

• Flexible customization: Bending, curved mounting, cutting; size/pixel pitch/shape customizable.

• High transparency: 80%-90% permeability, no background block.

• HD display: Equal pixel spacing, 16-bit grayscale, clear image.

• Outdoor-ready: 800nits brightness, for indoor/outdoor use.

• Easy install & seamless splice: Front/back glass mounting; splices up to 2.4-3m (H/W).

• Intelligent control: DMX/Art-Net compatible, supports remote management.

• Wide use: Commercial complexes, brand chains, ads media, performing arts.



XC-M2.5 Parameter

XC-M2.5

Pixel Pitch

Profile Dimension

Pixel Density

Transparency Rate

Pixel Configuration

Brightness

  • P2.5mm

    125x1200mm

    160000(dot/㎡)

    70%

    16bit

    ≥1500(cd/㎡)
